MongoDB Sharded Cluster Creation

MongoDB Sharded Cluster Creation

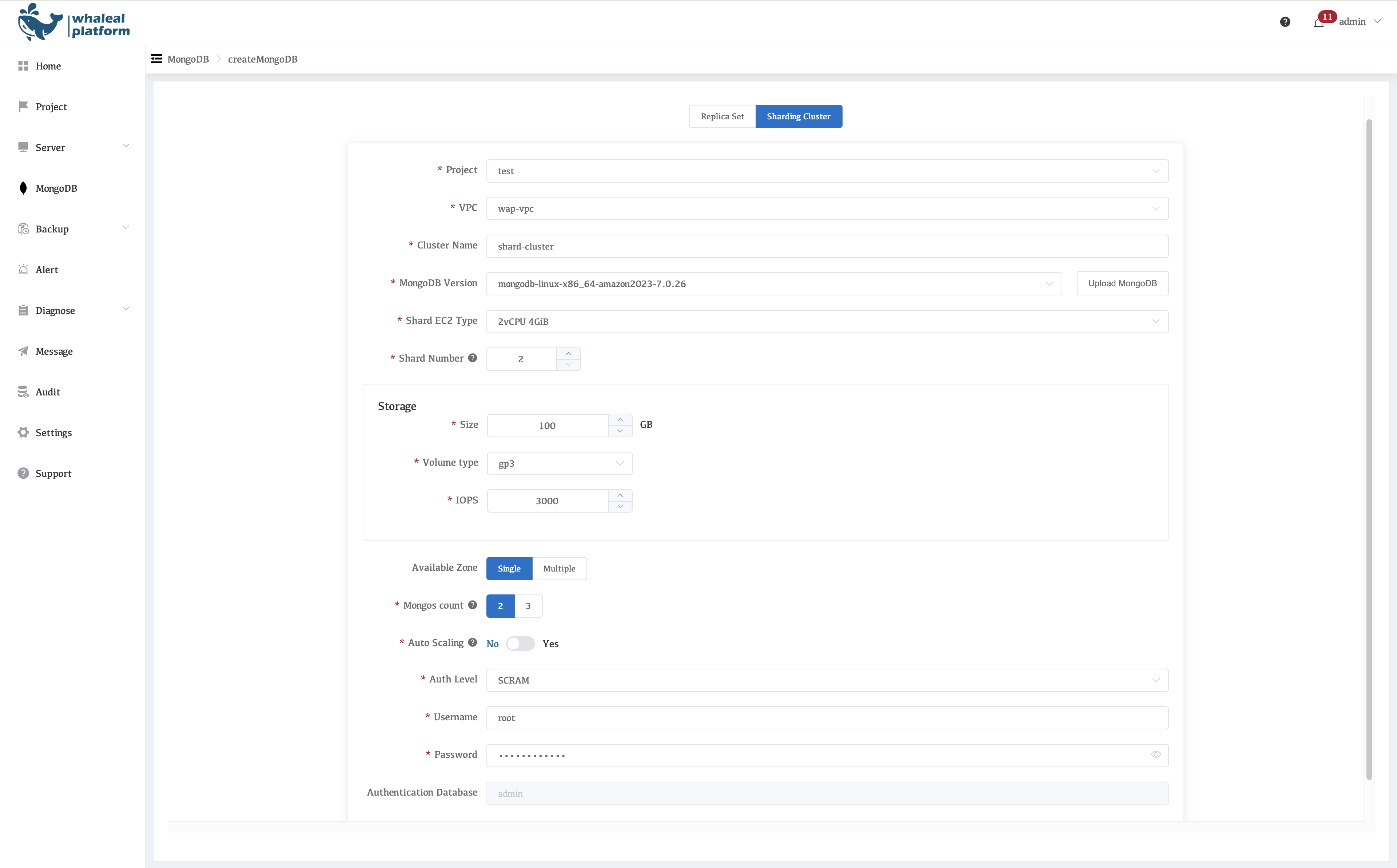

In the WAP console, click MongoDB → Create Cluster → Create MongoDB, then select Sharded Cluster mode.

1770010605200

1770014521857

1. Parameter Description

  • Project

    • Select the target Project.

  • VPC

    • Same rules as replica set creation.

  • Cluster Name

    • Name of the MongoDB sharded cluster.

  • MongoDB Version

    • MongoDB version to deploy. Uploading custom installation packages is supported.

  • MongoDB Node

    • Number of nodes per Shard (typically a 3-node replica set).

  • Shard EC2 Type

    • EC2 instance type used for Shard nodes.

  • Shard Number

    • Minimum: 2
    • Maximum: 10

  • Storage

    • Size

      • Data disk size for each Shard node.

    • Volume Type

      • Default: gp3.

    • IOPS

      • Default: 3000.

  • Available Zone

    • Availability Zone distribution strategy for Shard nodes.

  • Mongos Count

    • Number of Mongos router instances (deployed in the same AZs as the Shards).

  • Auto Scaling

    • Automatic scaling policy that supports Shard node instance type upgrades.

  • Auth Level

    • Username
    • Password

    • Authentication Database

      • MongoDB authentication configuration, default is admin.

2. Automated AWS Internal Workflow (Sharded Cluster)

WAP automatically completes the following sharded cluster deployment workflow within AWS:

  1. Config Server Replica Set Creation

    Automatically create a 3-node Config Server.

    Initialize the Config Server replica set.

    Store cluster metadata.

  2. Shard Replica Set Creation

    Create multiple replica sets based on the Shard Number.

    Each Shard independently completes EC2 provisioning, disk attachment, and MongoDB initialization.

    Automatically execute rs.initiate().

  3. Mongos Deployment

    Create the specified number of Mongos instances.

    Configure and connect Mongos to the Config Server.

  4. Shard Registration

    Automatically execute sh.addShard().

    Register all Shards with the sharded cluster.

  5. Authentication and Authorization Initialization

    Create a unified administrative user.

    Synchronize authentication configuration across Config Servers, Shards, and Mongos.

  6. Cluster Health Validation

    Validate the status of Shards, Config Servers, and Mongos.

    Verify replica set health and routing status.

  7. Platform Onboarding

    Onboard the cluster into the WAP unified monitoring and operations system.

    Enable alerting, backup, and scaling capabilities.

    Update the cluster status to Running.
